hina’s state-owned oil and gas firm China National Offshore Oil Corporation (CNOOC) has brought online the Kenli 10-2 oil field (Phase I), the largest shallow lithological oil field offshore China.
The project is located in southern Bohai Bay, with an average water depth of about 20 meters.

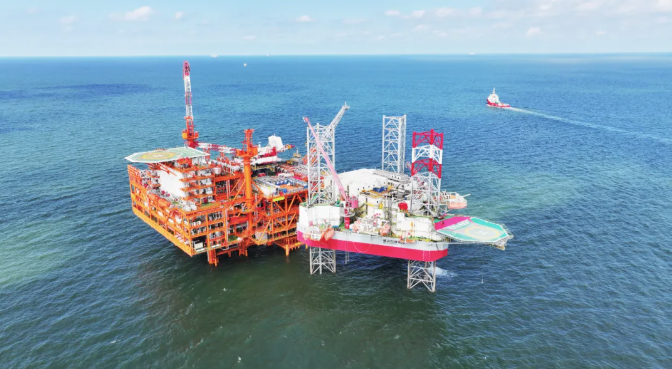

The main production facilities include a new central platform and two wellhead platforms, which leverages the adjacent existing facilities for development.
According to CNOOC, 79 development wells are planned to be commissioned, including 33 cold recovery wells, 24 thermal recovery wells, 21 water injection wells and one water source well.
The project is expected to achieve a peak production of approximately 19,400 barrels of oil equivalent per day in 2026. The oil property is heavy crude.
Kenli 10-2 oil field is the first lithological oilfield with proven in-place volume of 100 million tons discovered in the shallow depression zone of the Bohai Bay Basin.
It is being developed in two phases. CNOOC has adopted an innovative combined development approach of ‘conventional water injection combined with steam huff and puff and steam flooding’, providing strong technical support for the efficient utilization of oil reserves.
The project’s platform integrates both conventional cold production and thermal recovery systems, and is equipped with over 240 sets of key equipment. It is one of the most complex production platforms in the Bohai region and the first large-scale thermal recovery platform for heavy oil in southern Bohai Bay, CNOOC claims.
As China’s first offshore dendritic heavy oil reservoir under development, the Kenli 10-2 oilfield exhibits distinctive “dispersed, narrow, thin and heterogeneous” reserve distribution characteristics. The hydrocarbon deposits are trapped within elongated, sinuous sand bodies that interweave like shadows of tree branches on the ground – forming the namesake dendritic patterns – making extraction exceptionally challenging.
Cai Hui, Chief Reservoir Specialist at CNOOC Tianjin Branch’s Bohai Petroleum Research Institute, stated:“The ‘dendritic reservoir + thermal heavy oil recovery’ development model represents a globally rare approach in both reservoir type and extraction methodology. Through dedicated R&D breakthroughs, we have established a comprehensive technical system for complex viscous oil development. This system enables precise 3D reservoir characterization, achieves targeted thermal steam injection for optimized oil displacement, and provides critical technological support for the high-efficiency development of Kenli 10-2 Oilfield.”
Facing challenges including scattered reserves distribution and wide-ranging crude oil viscosity, the project innovatively adopted a combined development approach of “water flooding + steam huff-and-puff + steam drive.” The central processing platform was designed with dual production systems for conventional cold production and thermal heavy oil recovery, integrating multiple functions and equipped with over 240 sets of critical equipment. It is currently one of the most complex production platforms in the Bohai region in terms of process flow and the first large-scale thermal recovery platform in the southern Bohai Bay.
“The successful commencement of production of this project marks a new stage in the development of complicated heavy oil reservoirs offshore China. It will strongly support the Company’s Bohai Oilfield to achieve the annual gross production target of 40 million tons, contributing to the Company’s high-quality development through high-level operations,” said Yan Hongtao, President of CNOOC.
The production of offshore crude oil and natural gas may not be achieved without desanders.
Our high-efficiency cyclonic desanders, with their remarkable 98% separation efficiency for 2 microns particles removing, but very tight foot-print (skid size 1.5mx1.5m for a single vessel of D600mm or 24”NB x ~3000 t/t) for treatment of 300~400 M3/hr produced water), earned high acclaim from numerous international energy giants. our high-efficiency cyclone desander utilize advanced ceramic wear-resistant （or called, highly anti-erosion） materials, achieving a sand removal efficiency of up to 0.5 microns at 98% for gas treatment. This allows produced gas to be injected into the reservoirs for low permeability oilfield that utilizes miscible gas flooding and solves the problem of low permeability reservoirs development and significantly enhances oil recovery. Or, it can treat the produced water by removing particles of 2 microns above at 98% for directly re-injected into reservoirs, reducing marine environmental impact while enhancing oil-field productivity with water-flooding technology.
Our company is continuously committed to developing more efficient, compact, and cost-effective desander while also focusing on environmentally friendly innovations.
Our desanders come in a wide variety of types and have extensive applications, such as High-efficiency Cyclone Desander, Wellhead Desander, Cyclonic Well stream crude Desander With Ceramic Liners, Water injection Desander，NG/shale Gas Desander, etc. Each design incorporates our latest innovations to deliver superior performance across various industrial applications, from conventional drilling operations to specialized processing requirements.
Our desanders are manufactured using metal materials, ceramic wear-resistant materials, and polymer wear-resistant materials. This product’s cyclone desander has high sand removal efficiency. Different types of desanding cyclone tubes can be used to separate or remove particles required in different ranges. The equipment is small in size and does not require power and chemicals. It has a service life of about 20 years and can be discharged online. There is no need to stop production for sand discharge. SJPEE has an experienced technical team that uses advanced cyclone tube materials and separation technology.
SJPEE’s desanders have been used on wellhead platforms and production platforms in gas and oil fields such as CNOOC, PetroChina, Malaysia Petronas，Indonesia， the Gulf of Thailand,and others. They are used to remove solids in gas or well fluid or produced water, as well as seawater solidification removal or production recovery. Water injection and water flooding to increase production and other occasions. This premier platform has positioned SJPEE as a globally recognized solution provider in solid control & management technology.
We always prioritize our customers’ interests and pursue mutual development with them. We are confident that an increasing number of clients will choose our products.
Post time: Jul-31-2025
