Hydrocyclone is a liquid-liquid separation equipment commonly used in oil fields. It is mainly used to separate free oil particles suspended in liquid to meet the standards required by regulations. It uses the strong centrifugal force generated by the pressure drop to achieve high-speed swirling effect on the liquid in the cyclone tube, thereby centrifugally separating oil particles with lighter specific gravity to achieve the purpose of liquid-liquid separation. Hydrocyclones are widely used in petroleum, chemical industry, environmental protection and other fields. They can efficiently handle various liquids with different specific gravity, improve production efficiency and reduce pollutant emissions.
Hydrocyclones have become an indispensable technology in modern oil and gas operations, offering efficient and cost-effective solutions for fluid separation challenges. These compact, centrifugal separation devices play a critical role in upstream, midstream, and downstream operations, handling everything from produced water treatment to drilling mud purification. As environmental regulations tighten and operators seek more sustainable practices, hydrocyclones provide an optimal balance of performance, reliability, and operational flexibility. This article explores the fundamental principles, key applications, technological advantages, and future developments of hydrocyclone technology in the oil and gas sector.
Working Principle of Hydrocyclones
The operational principle of hydrocyclones relies on centrifugal forces generated by fluid dynamics rather than mechanical components. When pressurized fluid enters the conical chamber tangentially, it creates a high-velocity vortex with rotation speeds reaching up to 2,000 G-forces. This intense spinning motion causes the separation of components based on density differences:
- Dense phase migration: Heavier components (water, solids) move outward to the cyclone walls and descend toward the apex (underflow)
- Light phase concentration: Lighter components (oil, gas) migrate toward the central axis and exit through the vortex finder (overflow)
The separation efficiency depends on several factors including:
- Inlet design and flow velocity
- Cone angle and length-to-diameter ratio
- Fluid properties (density, viscosity)
- Pressure differential between inlet and overflow
Modern hydrocyclones achieve separation of oil droplets down to 10-20 microns in diameter, with some advanced designs （e.g. our FM-20 model）reaching sub-10 micron performance.
Key Applications in Oil & Gas Operations
1. Reinjected Water Disposal
Hydrocyclones serve as the primary technology for offshore produced water treatment, typically achieving 90-98% oil removal efficiency. Their compact size and lack of moving parts make them ideal for space-constrained platforms. In the North Sea, operators commonly deploy multiple 40 mm diameter cyclones in parallel arrays to handle flow rates exceeding 50,000 barrels per day. The cleaned water (with oil content <30 ppm) can be safely discharged or reinjected.
2. Drilling Fluid Processing
As secondary and tertiary solids control equipment, hydrocyclones remove fine cuttings (10-74 μm) from drilling fluids. Modern shale shaker/hydrocyclone combinations recover over 95% of valuable drilling fluid, significantly reducing waste volumes and fluid replacement costs. The latest designs incorporate ceramic liners to withstand abrasive slurries in extended-reach drilling operations.
3. Deoiling Hydrocyclone
Three-phase hydrocyclones effectively separate water and solids from crude oil streams. In heavy oil fields like Canada's oil sands, these systems reduce water cut from 30-40% to less than 0.5% BS&W (basic sediment and water). The compact footprint allows installation directly at wellheads, minimizing pipeline corrosion from water content.
4. Desanding Hydrocyclone
Desander hydrocyclones protect downstream equipment by removing 95% of particles >44 μm from produced fluids. In the Permian Basin, operators report 30% reductions in pump maintenance costs after installing hydrocyclone sand removal systems. Advanced designs feature automatic underflow controls to maintain consistent performance despite flow variations.
Technological Advantages
Hydrocyclones offer distinct benefits compared to traditional separation methods:
- Compact design: Requires 90% less space than gravity separators
- High capacity: Single units handle up to 5,000 bpd (barrels per day)
- Low maintenance: No moving parts and minimal wear components
- Operational flexibility: Handles wide flow rate variations (10:1 turndown ratio or above with special methods)
- Energy efficiency: Operates on natural pressure differentials (typically 4
-10 bar)
Recent innovations include:
- Nanocomposite liners extending service life 3-5 times
- Smart monitoring with IoT sensors for real-time performance tracking
- Hybrid systems combining hydrocyclones with electrostatic coalescers
Conclusion

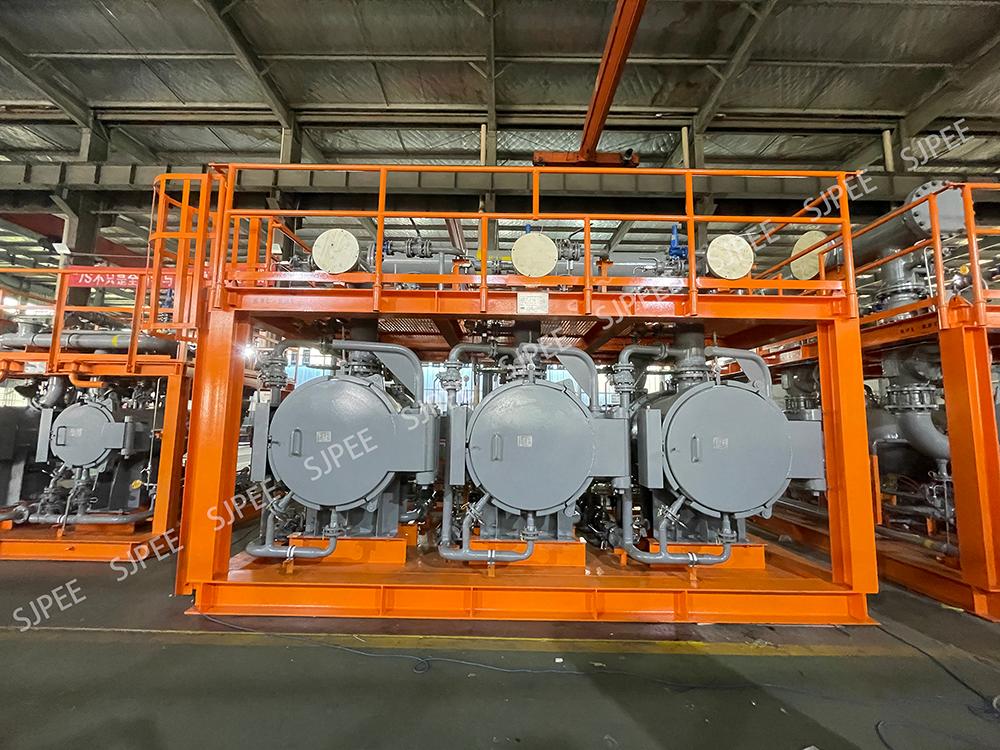

Our hydrocyclone adopts a special conical structure design, and a specially constructed cyclone is installed inside it. The rotating vortex generates centrifugal force to separate the free oil particles from the liquid (such as produced water). This product has the characteristics of small size, simple structure and easy operation, and is suitable for various working scenarios. It can be used alone or in combination with other equipment (such as air flotation separation equipment, accumulation separators, degassing tanks, etc.) to form a complete production water treatment system with large production capacity per unit volume and small floor space. Small; high classification efficiency (up to 80% ~ 98%); high operating flexibility (1:100, or higher), low cost, long service life and other advantages.
Our Deoiling HydroCyclone、Reinjected Water Cyclone Desander、Multi-chamber hydrocyclone、PW Deoiling Hydrocyclone、Debulky water & Deoiling hydrocyclones、Desanding hydrocyclone have been exported to many countries，We have been selected by numerous domestic and international clients, receiving consistently positive feedback on our product performance and service quality.
We firmly believe that only by delivering superior equipment can we create greater opportunities for business growth and professional advancement. This dedication to continuous innovation and quality enhancement drives our daily operations, empowering us to consistently deliver better solutions for our clients.
Hydrocyclones continue to evolve as a vital separation technology for the oil and gas industry. Their unique combination of efficiency, reliability, and compactness makes them particularly valuable in offshore and unconventional resource development. As operators face increasing environmental and economic pressures, hydrocyclone technology will play an even greater role in sustainable hydrocarbon production. Future advancements in materials, digitalization, and system integration promise to further enhance their performance and application scope.
